Live preview
See what it looks like
LMCEM03D05BP32M0
Lumen 30
8-color palette, perfect for menu boards and counters.
₹12,990.00
incl. GST · free shipping over ₹25,000
Size
3 × 0.5 ft
Resolution
144 × 24
Color depth
3-bit color
Pixel pitch
P5
Free shipping pan-India over ₹25,000
2-year manufacturer warranty + 7-day return
Android & web app included free for life
Description

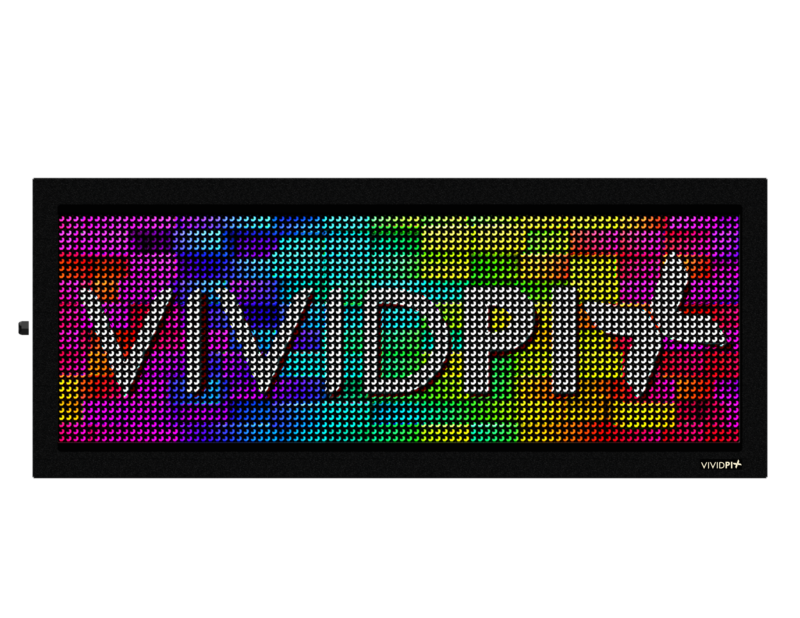

A wider 3×0.5 ft panel with an 8-color (3-bit) palette. Same compact form factor as the Lumen 20, but room for color-coded messages and basic iconography.
Popular for cafe menu boards, pharmacy displays, and clinic queue management.
Specifications
The full data sheet
Display
| Model | LMCEM03D05BP32M0 |
|---|---|
| Series | Lumen |
| Physical size | 3 × 0.5 ft |
| Resolution | 144 × 24 pixels |
| Pixel pitch | P5 mm |
| Color depth | 3-bit color |
| Refresh rate | 60 Hz |
| Brightness | 1,500 cd/m² (indoor) |
Power & I/O
| Input voltage | 100–240V AC, 50/60Hz |
|---|---|
| Power consumption | 60W typical |
| Connectivity | Wi-Fi 2.4GHz · Ethernet (optional) |
| Control | Android app · Web app · REST API |
| Languages | Unicode (220+ scripts) |
| Mount | Universal wall bracket included |
| Enclosure | Powder-coated aluminium · IP20 |
| Warranty | 2 years |
